Monday 4/25

Guest Stefan Kaltenegger

Review HW

Animation & Tweening

Tween - "Short for in-betweening, the process of generating intermediate frames between two images to give the appearance that the first image evolves smoothly into the second image. Tweening is a key process in all types of animation, including computer animation. Sophisticated animation software enables you to identify specific objects in an image and define how they should move and change during the tweening process." (via webopedia)

Let's review

Some animation options that we have already covered:

  • CSS Transitions

div {
    transition-property: width;
    transition-duration: 2s;
    transition-timing-function: linear;
    transition-delay: 1s;
}

  • jQuery animations

$('#myButton').hide(2);

setInterval

You can schedule events over time using JavaScript.

Schedule an event to happen at millis in the future:

setTimeout(someFunction, millis);

Run repeatedly every millis milliseconds:

setInterval(someFunction, millis);

Assign the interval to a variable...

var myInterval = setInterval(someFunction, millis);

if you want to cancel it later:

clearInterval(myInterval);

GreenSock Animation Platform (GSAP)

GreenSock is a set of JavaScript libraries for animation, including TweenLite/TweenMax and TimelineLite/Timeline/Max.

The max versions have additional plugins that you would have to include seprately if you use the Lite versions.

Download and find the CDN links here and include it in your page:

<script src="https://cdnjs.cloudflare.com/ajax/libs/gsap/1.18.0/TweenMax.min.js"></script>

Tweening JS Object Properties

We can tween numeric properties of JavaScript objects. The most common is .to where you don't care about the starting value, just the value you're transitioning to.

var obj = {
    count: 0
};

// obj.count --> 100 over the course of 20 seconds
var tween = TweenLite.to(obj, 20, {
    count: 100,
});

To view the values, we could log them using a setInterval:

var myInterval = window.setInterval( function() {
  console.log(obj.count);
 }, 300);

Tweening HTML Element / CSS Properties

<button id="red-bar" style="background-color:red;"></button>

In JavaScript:

var tween = TweenLite.to('#red-bar', 5, {
  width: "100%"
});

Here, we gave tween a css selector, "#red-bar". Alternately, we could also pass in

  • a jQuery element $('#red-bar')
  • a DOM element document.getElementbyId('red-bar')

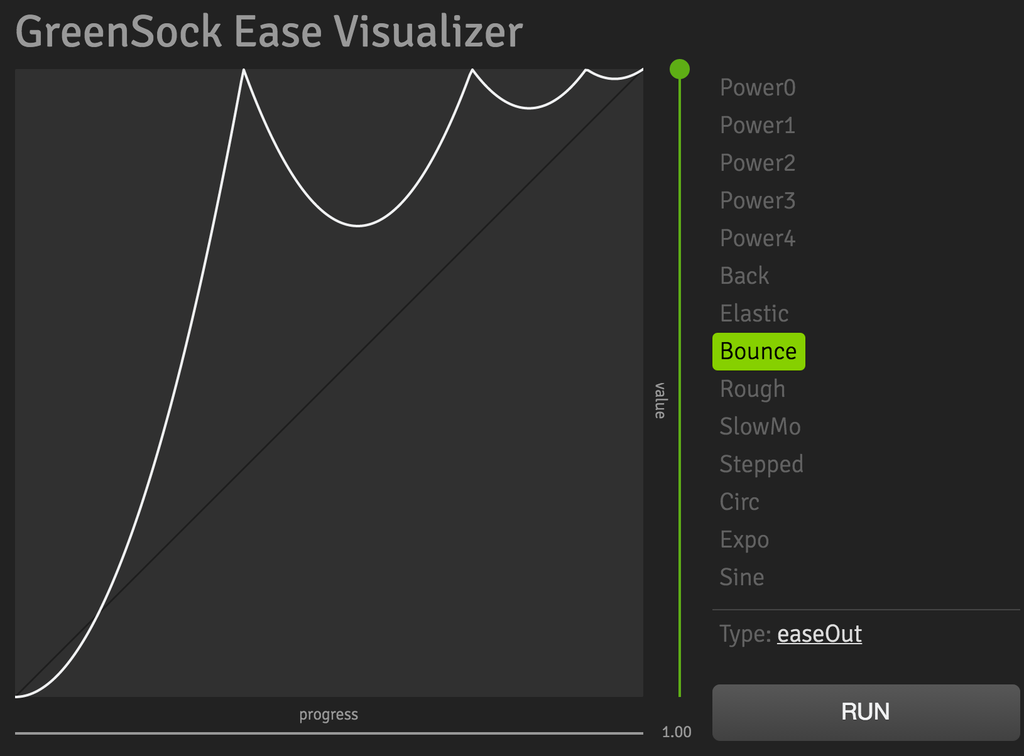

Easing

The Tweens can be linear, or non-linear. There are many easing functions to choose from to get different types of transition effects. Let's play with them on GreenSock's website!

http://greensock.com/get-started-js#easing

http://greensock.com/get-started-js#easing

Controlling Tweens

Every time you create a Tween, you can assign it to a variable which gives you more control. For example, you can pause, reverse, and change the speed. Read more here.

Timeline

GreenSock's Timeline is for grouping and sequencing multiple Tweens.

//create a TimelineLite instance
var tl = new TimelineLite();

Instead of calling TimelineLite, you can append tweens directly to the timeline:

tl.to("#red-bar", 5, {
  width: "100%"
});

By default, tweens trigger in sequence, one after the other. You can give them offsets by passing in a third option like this:

tl.to("#red-bar", 1, {opacity:0.5}, "+=0.75");

Use timeline.call(myFunction) to call functions at moments during the timeline.

tl.call(myFunction);

Read more: http://greensock.com/get-started-js#sequencing

Resources:

Wednesday

SVG Animation

Animation with SVG (Scalable Vector Graphics) is very powerful. We render raster images (jpg, png, gif) by storing information about every pixel. But with SVG, we store information about each geometric shape in XML.

    <svg id="circle" viewBox="0 0 120 120" version="1.1"
      xmlns="http://www.w3.org/2000/svg">
      <circle cx="60" cy="60" r="50"/>
    </svg>

SVG <animate>

SVG has an <animate> property that can be used like this: https://developer.mozilla.org/en-US/docs/Web/SVG/Element/animate

It is powerful, but if you want to do complex animations it can be a lot of work.

Fortunately, just like HTML element attributes, we can style SVG's with CSS, and manipulate SVG attributes with JavaScript. For example:

    <svg viewBox="0 0 120 120" version="1.1"
      xmlns="http://www.w3.org/2000/svg">
      <circle id="circle-elt" cx="60" cy="60" r="50"/>
    </svg>

    <script>
        var c = document.getElementById('circle-elt');
        var inc = 0.9;

        // animate every 30 milliseconds
        setInterval(animateCircle, 30);

        function animateCircle() {
          // change circle radius
          c.attributes.r.value *= inc;

          if (c.attributes.r.value <= 1) {
            inc = 1.1;
          } else if (c.attributes.r.value >= 100) {
            inc = 0.9;
          }
        }
    </script>

Fortunately there are JavaScript libraries that deal with SVG animation.

We've seen some of these as part of GreenSock's GSAP. Some of their plugins like drawSVG and morphSVG are not free, but there are open source alternatives:

  • Vivus is an open-source alternative to drawSVG.
  • SVG Morpheus is an open-source alternative to morphSVG

Vivus

Vivus is a library for drawing SVG's. By default, it draws the SVG when you scroll to that point in the page, but you can change this with an options object, and manipulate the animation yourself if you want.

Include Vivus on your page:

<script src="https://cdnjs.cloudflare.com/ajax/libs/vivus/0.3.0/vivus.js"></script>

Include the SVG on your page. We'll use an example from iconfinder, or create your own.

<svg id="my-svg" ...

Vivus animates paths or lines, which have a "stroke". But it does not animate "fill". So in our CSS, we need to ensure that our SVG element has no fill, and has a stroke. These are SVG-specific styles.

      svg * {
        fill-opacity: 0;
        transition: fill-opacity 1s;
        stroke:purple;
        stroke-width:0.1;
      }

      svg.finished * {
        /*fill-opacity: 1;*/
      }

From here, we tell Vivus to do its magic on our SVG:

        var vivus1 = new Vivus('my-svg', {
          duration:300
        }, function(r) {
          // optional callback adds class "finished" when done
          vivus1.el.classList.add('finished');
        });

More SVG JS Libraries:

Apps for SVG Creation:

  • Inkscape is a free app for Mac, Windows and Linux
  • Adobe Illustrator is the industry standard

Single Page example with Bootstrap ScrollSpy

HW:

Work on your final, come to class on Monday with a mockup and questions prepared to get feedback from your classmates.

Next class we will continue Learning Log presentations from those who did not get a chance to present this time:

  • Joy
  • George
  • Jamie
  • Nicole
  • Stephen
  • James C
  • Yuening
  • Cindy
  • Camille
  • Susie
